Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2802441

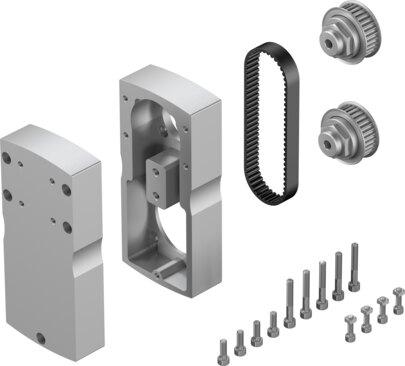

Parallel kit EAMM-U-86-D40-80P-102
The Festo 2802441 is an industrial component featuring a size 86 frame, a 1:1 gear ratio, and a transferable torque of 9.5 Nm with a 0.25 Nm no-load driving torque. This RoHS-compliant unit weighs 2300 g, incorporates a mass moment of inertia of 175 kgmm², and utilizes actuator interface code D40B alongside motor input interface code 80P. Operating within an ambient temperature range of -10 °C to 60 °C and a storage temperature range of -25 °C to 60 °C, it achieves an IP40 degree of protection and VDMA24364 Zone III LABS conformity at relative air humidity levels between 0 and 95%. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2802441
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2802441.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2300 g
- Interface code, actuator
- D40B
- Interface code, motor in
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2802441. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
