Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2802708

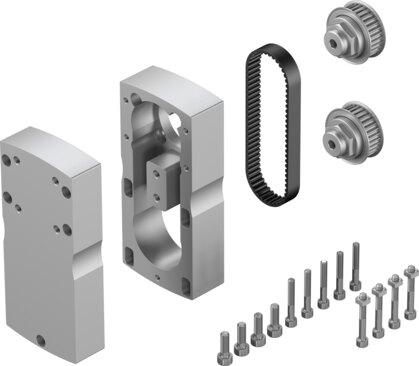

Parallel kit EAMM-U-86-D50-87A-102
The Festo 2802708 is an industrial component featuring size 86 dimensions, a 1:1 gear ratio, and a transferable torque of 9.5 Nm with a no-load driving torque of 0.25 Nm. Weighing 2550 g with a mass moment of inertia of 175 kgmm², this RoHS compliant part includes actuator interface code D50B and motor-in interface code 87A while supporting a maximum rotational speed of 5000 rpm in any mounting position. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity up to 95%, offering an IP40 degree of protection and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2802708
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2802708.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2550 g
- Interface code, actuator
- D50B
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2802708. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
