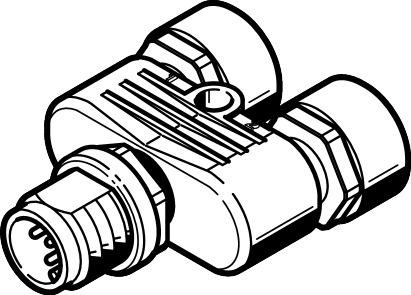

Name: Festo 2839846 Push-in T-connector NEDU-L2R1-V8-M12G5-M12G5
Brand: Festo

Push-in T-connector NEDU-L2R1-V8-M12G5-M12G5

The Festo part number 2839846 is an industrial component built on the EN 61076-2-101 norm with screw-in mounting and a product weight of 28 g. It features a straight socket M12x1 5-pin A-coded electrical connection 1, straight plug M12x1 2-pin A-coded electrical connection 2, and straight plug M12 3-pin A-coded electrical connection 3, supporting a DC operating voltage range of 0 V to 30 V and a current rating of 4 A at 40° C. The black TPE-U(PUR) housing incorporates gold-plated copper alloy pin contacts, FPM seals, and a nickel-plated die-cast zinc union nut, delivering IP65 and IP67 protection, 1.5 kV surge resistance, and CRC 2 moderate corrosion stress resistance within an ambient temperature range of -25 °C to 85 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this RoHS-compliant and VDMA24364-B2-L LABS-conforming component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2839846
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2839846.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Type of mounting: Screw-in
Product weight: 28 g
Electrical connection 1: Straight socket, M12x1, 5-pin, A-coded
Electrical connection 2: Straight plug, M12x1, 2-pin, A-coded
Electrical connection 3: Straight plug, M12, 3-pin, A-coded
DC operating voltage range: 0 V...30 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Degree of protection: IP65 | IP67
Ambient temperature: -25 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Housing material: TPE-U(PUR)
Housing colour: Black
Material of union nut: Die-cast zinc | Nickel-plated
Seals material: FPM
Material of pin contacts: Copper alloy | Gold-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2839846. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
