2839867

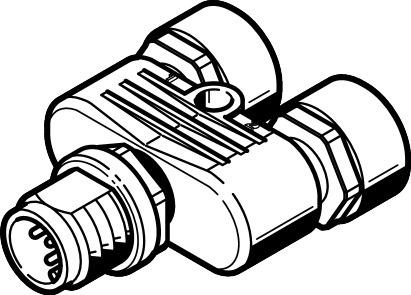

Name: Festo 2839867 Push-in T-connector NEDU-L2R1-V10-M12G5-M12G5
Brand: Festo

Push-in T-connector NEDU-L2R1-V10-M12G5-M12G5

The Festo 2839867 is an industrial component featuring an EN 61076-2-101 screw-in mounting design with a straight socket M12x1 5-pin A-coded electrical connection 1, a straight socket M12 5-pin A-coded electrical connection 2, and a straight plug M12 5-pin A-coded electrical connection 3. This 25 g unit operates across a 0 V to 30 V DC voltage range, a 4 A current rating at 40° C, a 1.5 kV surge resistance, and an ambient temperature range of -25° C to 85° C while maintaining IP65 and IP67 protection degrees. Built with a black TPE-U(PUR) housing, nickel-plated die-cast zinc union nut, FPM seals, and gold-plated copper alloy pin contacts, the RoHS-compliant assembly conforms to VDMA24364-B2-L LABS, contamination level 3, and CRC 2 moderate corrosion stress standards. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2839867
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2839867.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Type of mounting: Screw-in
Product weight: 25 g
Electrical connection 1: Straight socket, M12x1, 5-pin, A-coded
Electrical connection 2: Straight socket, M12, 5-pin, A-coded
Electrical connection 3: Straight plug, M12, 5-pin, A-coded
DC operating voltage range: 0 V...30 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Degree of protection: IP65 | IP67
Ambient temperature: -25 °C...85 °C
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Housing material: TPE-U(PUR)
Housing colour: Black
Material of union nut: Die-cast zinc | Nickel-plated
Seals material: FPM
Material of pin contacts: Copper alloy | Gold-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2839867. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
