Festo
2844348

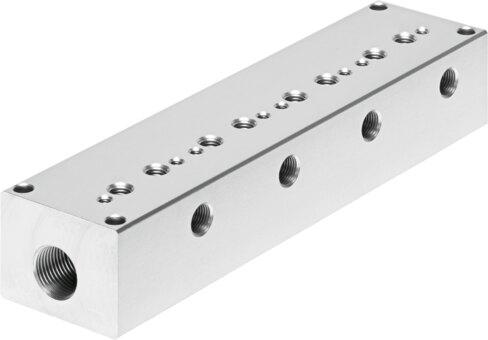

Manifold block MRS-4
The Festo size 4 industrial component, part number 2844348, is a wrought aluminum alloy sub-base accommodating up to 4 valve positions with a pneumatic connection 1 of G3/8. Featuring an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a CRC 2 moderate corrosion stress rating, the 650 g assembly adheres to RoHS standards and VDMA24364-B1/B2-L LABS conformity. Installation requires a maximum tightening torque of 2.5 Nm for valve mounting and 4 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2844348
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2844348.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 2.5 Nm
- Max. tightening torque for wall mounting
- 4 Nm
- Product weight
- 650 g
- Pneumatic connection 1
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2844348. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
