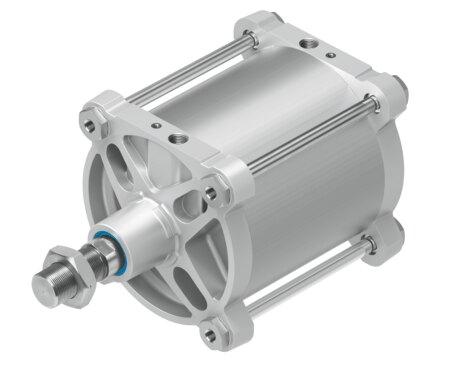

Reference imageConfirm configuration by manufacturer part number.
Festo
2865078
ISO cylinder DSBG-250- -PPVA-N3
The Festo 250 mm piston diameter industrial component features a double-acting mode of operation with an adjustable pneumatic cushioning at both ends and a 55 mm cushioning length. Built to ISO 15552 standards, this tie-rod cylinder includes a 1 mm to 2250 mm stroke, an M42x2 external piston rod thread at one end, and position sensing via proximity switch. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.06 MPa to 1 MPa pressure range and a -20 °C to 80 °C ambient temperature span. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2865078
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2865078.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2250 mm
- Piston diameter
- 250 mm
- Piston rod thread
- M42x2
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 55 mm
- Cushioning length, advancing
- 55 mm
- Cushioning length, retracting
- 55 mm
- Theoretical force at 6 bar, retracting
- 28274 N
- Theoretical force at 6 bar, advancing
- 29452 N
- Moving mass at 0 mm stroke
- 9978 g
- Additional moving mass per 10 mm stroke
- 157 g
- Basic weight with 0 mm stroke
- 29313 g
- Additional weight per 10 mm stroke
- 384 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
