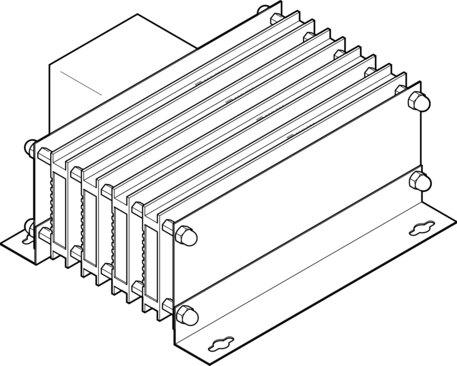

Reference imageConfirm configuration by manufacturer part number.
Festo
2882343
Braking resistor CACR-KL2-40-W2000
The Festo size 500 industrial component, part number 2882343, is a 40 Ohm braking resistor featuring a nominal power of 800 W and an output of 2000 W at a 35% duty cycle and 20 °C. It provides a pulse energy braking resistor rating of 8000 Ws at 380 V and 7200 Ws at 780 V, protected by an IP65 degree of protection and certified with c CSA us (OL) and c UL us - recognized (OL). Weighing 2400 g with RoHS-compliant materials, the unit supports open convection or vertical mounting positions via through-holes or accessories within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2882343
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2882343.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 500
- Mounting position
- Open convection | Vertical
- Pulse energy braking resistor at 380 V
- 8000 Ws
- Pulse energy braking resistor at 780 V
- 7200 Ws
- Output at 35% duty cycle and 20°C
- 2000 W
- Braking resistor nominal power
- 800 W
- Braking resistor nominal power at 380 V
- 600 W
- Braking resistor nominal power at 780 V
- 480 W
- Resistance value
- 40 Ohm
- Certication
- c CSA us (OL) | c UL us - recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 2400 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2882343. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
