Festo
2895920

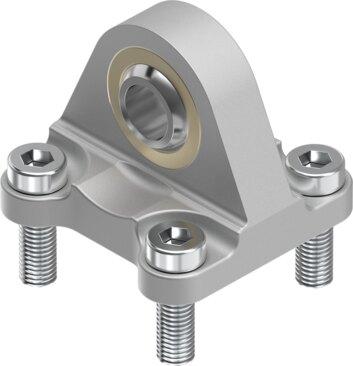

Clevis flange CRSNCS-32
The Festo part number 2895920 is a Size 32 industrial component based on the ISO 15552 norm, featuring high corrosion protection and a Corrosion Resistance Class (CRC) of 4 for particularly high corrosion stress. Constructed with high-alloy stainless steel mounting materials and screws, along with a rod end bearing made of PTFE and high-grade steel, the unit operates within an ambient temperature range of -40 °C to 150 °C and supports a maximum load capacity of 1 kN. Weighing 161 g and conforming to VDMA24364-B2-L LABS standards, this RoHS-compliant component includes specific restrictions regarding metals with more than 5% copper, zinc, or nickel to maintain suitability for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2895920
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2895920.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 1 kN
- Product weight
- 161 g
- Note on materials
- RoHS compliant
- Mounting material
- high-alloy stainless steel
- Rod end bearing material
- PTFE | High-grade steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2895920. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
