Festo
2895922

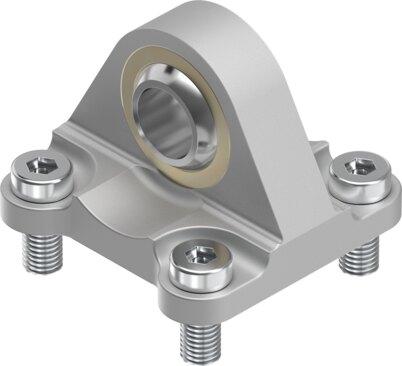

Clevis flange CRSNCS-50
The Festo industrial component, part number 2895922, is a size 50 part based on norm ISO 15552 featuring high corrosion protection with a corrosion resistance class (CRC) of 4. This 403 g RoHS-compliant unit operates within an ambient temperature range of -40 °C to 150 °C, supports a maximum load capacity of 2.5 kN, and utilizes high-alloy stainless steel mounting material, PTFE and high-grade steel rod end bearing material, and high-alloy stainless steel screws. It meets VDMA24364-B2-L LABS conformity and is suitable for the production of Li-ion batteries under specific material exclusion rules for copper, zinc, and nickel. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2895922
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2895922.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 2.5 kN
- Product weight
- 403 g
- Note on materials
- RoHS compliant
- Mounting material
- high-alloy stainless steel
- Rod end bearing material
- PTFE | High-grade steel
- Material of screws
- high-alloy stainless steel
