Festo
2895925

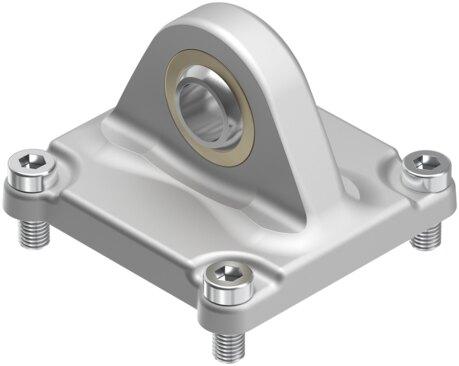

Clevis flange SNCS-100-R3
The Festo part number 2895925 is an industrial component in size 100 constructed on the basis of ISO 15552 featuring high corrosion protection. This variant achieves CRC 3 for high corrosion stress, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 150 °C with a max load capacity of 9 kN and a product weight of 679 g. It includes wrought aluminum alloy mounting material with a protective coating, a rod end bearing made of PTFE and high-grade steel, and high-alloy stainless steel screws, while featuring RoHS compliant materials and specific restrictions for the production of Li-ion batteries regarding copper, zinc, and nickel content. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2895925
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2895925.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Max. load capacity
- 9 kN
- Product weight
- 679 g
- Note on materials
- RoHS compliant
- Mounting material
- Wrought aluminum alloy | With protective coating
- Rod end bearing material
- PTFE | High-grade steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2895925. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
