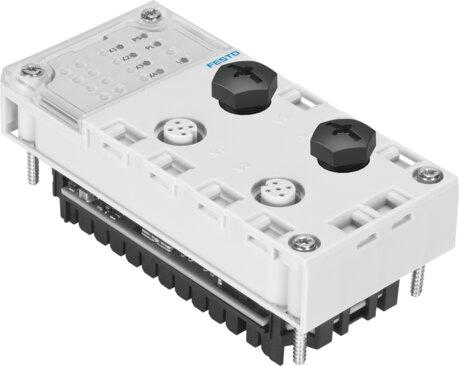

Reference imageConfirm configuration by manufacturer part number.
Festo
2900543
Electrical interface CPX-CTEL-2-M12-5POL-LK
The Festo industrial component, part number 2900543, features IO-Link communication with dimensions of 50 mm by 107 mm by 55 mm including the interlinking block and a product weight of 110 g. Constructed with a reinforced PA and PC housing, it provides IP65 and IP67 protection ratings, a maximum cable length of 20 m, and operates within an ambient temperature range of -5 °C to 50 °C. Featuring dual 5-pin A-coded M12 electrical connection ports, DIL switch control elements, and comprehensive LED indicators, the unit supports a maximum address capacity of 32 bytes for both inputs and outputs alongside robust module-orientated diagnostics. Request a quote by submitting the exact part number, quantity, and application requirements today.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2900543
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2900543.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- IO-Link®
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 55 mm
- Product weight
- 110 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 20 m
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED indicators
- PS: electronic supply, sensor supply | PL: Load supply | X1: system status, IO-Link® port 1 | X1: system status, IO-Link® port 2 | Group diagnostics
- Diagnostics
- Communication error | Module short circuit | Module-orientated diagnostics | Undervoltage
- Control elements
- DIL switch
- Max. address capacity inputs
- 32 byte
- Max. address capacity outputs
- 32 byte
- Parameterization
- Diagnostic behavior | Failsafe per channel | Forcing per channel | Idle mode per channel | Module parameters
- Electrical connection
- 2x port | 5-pin | A-coded | M12
