Festo
2942446

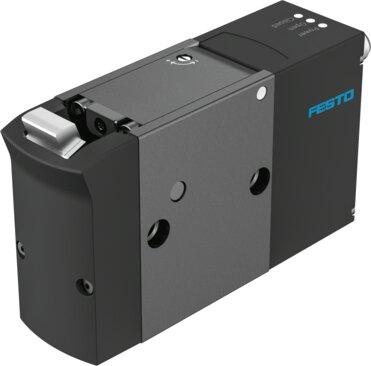

Stopper cylinder EFSD-50-PV-M12
The Festo 2942446 is an electric stopper cylinder of size 50 featuring a structural design with a 17.5 mm cushioning length, 800 g product weight, and a maximum cycle rate of 0.33 Hz. This component operates within an ambient temperature range of -10 °C to 60 °C, supports any mounting position via a mounting kit, and incorporates position sensing with a Hall sensor alongside NBR seals and a reinforced PA cover. It maintains a low corrosion stress rating (CRC 1), VDMA24364 Zone III LABS conformity, RoHS compliance, RCM certification, and permits a lateral force of 50 N during switching operations with equal 0.15 s retracting and advancing times. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2942446
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2942446.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Electric stopper cylinder
- Size
- 50
- Mounting position
- Any
- Position sensing
- With Hall sensor
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- -10 °C...60 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95% | Non-condensating
- Cushioning length
- 17.5 mm
- Product weight
- 800 g
- Max. cycle rate
- 0.33 Hz
- Type of mounting
- With mounting kit
- Retracting time
- 0.15 s
- Advancing time
- 0.15 s
- Permissible lateral force during switching operation
- 50 N
- Certication
- RCM compliance mark
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cover material
- PA | PA-reinforced
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy, hard-anodized
- Piston rod material
- high-alloy stainless steel
- Material of screws
- Coated steel
- Max. current consumption
- 2 A
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/-15%
- Motor type
- Stepper motor
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
