Festo
2946762

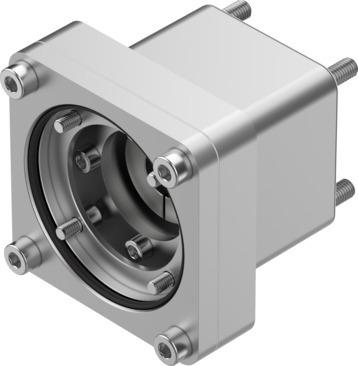

Axial kit EAMM-A-D60-80G-S1
The Festo 2946762 is an industrial component featuring an actuator interface code of D60 and a motor-in interface code of 80G, with a transferable torque of 17 Nm and a max. rotational speed of 6000 rpm. This RoHS-compliant part has a nominal length of 88.4 mm, a mass moment of inertia of 34.8 kgmm², a product weight of 1350 g, and VDMA24364 zone III LABS conformity. It provides an IP65 degree of protection, operates at ambient temperatures from -10 °C to 60 °C, allows storage temperatures from -25 °C to 60 °C, supports 0 to 95 % relative air humidity, and accommodates any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2946762
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2946762.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 88.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1350 g
- Interface code, actuator
- D60
- Interface code, motor in
- 80G
- Note on materials
- RoHS-compliant
