Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2946763

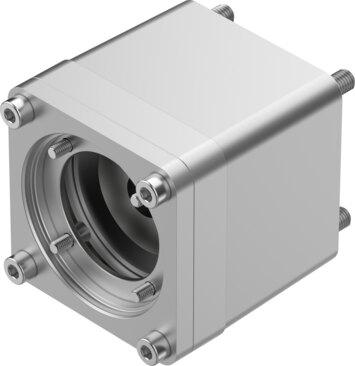

Axial kit EAMM-A-D80-80G
The Festo 2946763 industrial component is engineered with a nominal length of 102 mm, a product weight of 1990 g, and an actuator interface code of D80 paired with a motor input interface code of 80G. It delivers a transferable torque of 60 Nm and a maximum rotational speed of 5500 rpm, featuring a mass moment of inertia of 128 kgmm² alongside RoHS-compliant materials and VDMA24364-B2-L LABS conformity. This unit operates within an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, relative air humidity from 0 to 95%, and provides an IP40 degree of protection for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2946763
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2946763.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 102 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 1990 g
- Interface code, actuator
- D80
- Interface code, motor in
- 80G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2946763. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
