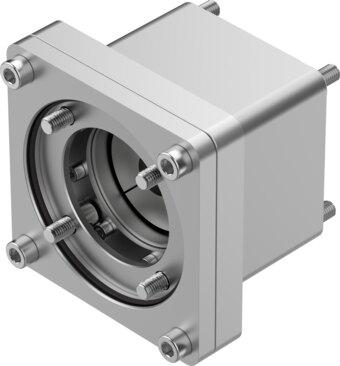

Reference imageConfirm configuration by manufacturer part number.
Festo
2946765
Axial kit EAMM-A-D100-120G-S1
The Festo part number 2946765 is an industrial component with a nominal length of 115 mm, a mass moment of inertia of 280 kgmm², and a product weight of 3520 g, featuring an actuator interface code of D100 and a motor input interface code of 120G. This assembly accommodates a transferable torque of 143 Nm and operates at a maximum rotational speed of 4500 rpm within an ambient temperature range of -10 °C to 60 °C, supported by an IP65 degree of protection and VDMA24364-B2-L LABS conformity. RoHS compliant materials are utilized, allowing storage temperatures between -25 °C and 60 °C, relative air humidity from 0 to 95%, and installation in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2946765
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2946765.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 115 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 280 kgmm²
- Transferable torque
- 143 Nm
- Product weight
- 3520 g
- Interface code, actuator
- D100
- Interface code, motor in
- 120G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2946765. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
