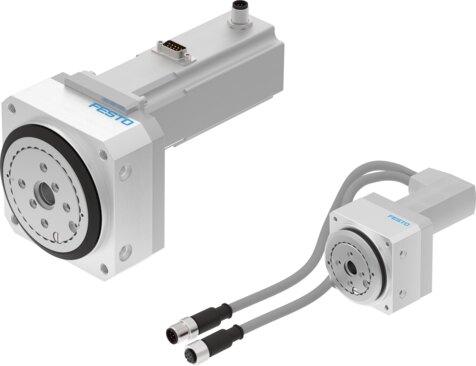

Reference imageConfirm configuration by manufacturer part number.
Festo
2954695
Rotary actuator ERMO-12
The Festo 2954695 is an electromechanical rotary actuator of size 12 featuring an integrated gearbox with a 9:1 gear ratio and infinite rotation angle. Weighing 475 g, it delivers a nominal torque of 0.15 Nm, a nominal rotary speed of 100 rpm, a maximum speed of 200 rpm at 90°, and operates at a 100% duty cycle with any mounting position utilizing internal threads. Technical parameters include a 1.8 degree step angle with a ±5% tolerance, 0.2 deg torsional backlash, ±0.05° repetition accuracy, 0.0003 kgm² permissible mass moment of inertia, 0.0079 kgcm² mass moment of inertia JO, 2E-05 J impact energy in the end positions, 180 N max. axial force, and 200 N max. radial force. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2954695
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2954695.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Structural design
- Electromechanical rotary actuator | With integrated gearbox
- Mounting position
- Any
- Type of mounting
- With internal thread
- Rotation angle
- Innite
- Gear ratio
- 9:1
- Nominal torque
- 0.15 Nm
- Nominal rotary speed
- 100 rpm
- Max. speed at 90°
- 200 rpm
- Impact energy in the end positions
- 2E-05 J
- Torsional backlash
- 0.2 deg
- Repetition accuracy
- ±0.05°
- Max. axial force
- 180 N
- Max. radial force
- 200 N
- Permissible mass moment of inertia
- 0.0003 kgm²
- Product weight
- 475 g
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Mass moment of inertia JO
- 0.0079 kgcm²
- Duty cycle
- 100%
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 0.8 A
- Insulation protection class
- B
- Motor type
- Stepper motor
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
- Electrical connection technology
- Plug
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
