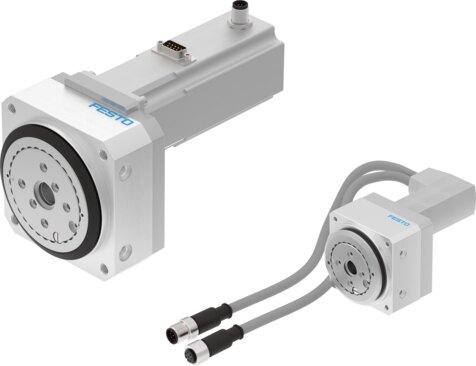

Reference imageConfirm configuration by manufacturer part number.
Festo
2954697
Rotary actuator ERMO-25
The Festo 2954697 is an electromechanical rotary actuator featuring an integrated gearbox with a 9:1 gear ratio and a size 25 design supporting any mounting position via internal thread. This unit delivers a nominal torque of 2.5 Nm, a nominal rotary speed of 66 rpm, a maximum speed of 150 rpm at 90 degrees, and infinite rotation angle capabilities with a 100% duty cycle. Operating with a 1.8-degree full step angle, 0.2 degrees of torsional backlash, and a repetition accuracy of plus or minus 0.05 degrees, the 1350 g component accommodates a maximum axial force of 350 N, a maximum radial force of 450 N, and a permissible mass moment of inertia of 0.0065 kgm2. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2954697
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2954697.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Structural design
- Electromechanical rotary actuator | With integrated gearbox
- Mounting position
- Any
- Type of mounting
- With internal thread
- Rotation angle
- Innite
- Gear ratio
- 9:1
- Nominal torque
- 2.5 Nm
- Nominal rotary speed
- 66 rpm
- Max. speed at 90°
- 150 rpm
- Impact energy in the end positions
- 0.00016 J
- Torsional backlash
- 0.2 deg
- Repetition accuracy
- ±0.05°
- Max. axial force
- 350 N
- Max. radial force
- 450 N
- Permissible mass moment of inertia
- 0.0065 kgm²
- Product weight
- 1350 g
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Mass moment of inertia JO
- 0.114 kgcm²
- Duty cycle
- 100%
- Nominal operating voltage DC
- 24 V
- Brake DC operating voltage
- 24 V
- Brake power consumption
- 8 W
- Brake holding torque
- 2.5 Nm
- Brake mass moment of inertia
- 0.013 kgcm²
- Motor nominal current
- 3 A
- Insulation protection class
- B
- Motor type
- Stepper motor
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
