Festo
2960

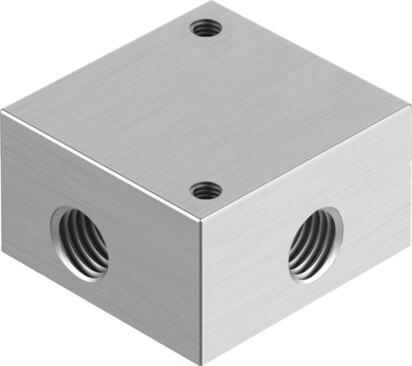

Distributor block FR-4-1/4
The Festo part number 2960 is an industrial component featuring an anodized aluminum housing with one G1/4 internal thread supply line and three G1/4 internal thread outlets. This unit has an 11.5 mm nominal width, a product weight of 68 g, and supports any mounting position within an ambient temperature range of -10 °C to 80 °C. It operates on compressed air according to ISO 8573-1:2010 [7:-:-] at operating pressures from 0 bar to 16 bar across the entire temperature range, permitting oil lubrication that is required for further use. The component offers CRC 2 moderate corrosion stress resistance, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2960
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2960.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11.5 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 68 g
- No. of outlets
- 3
- No. of supply lines
- 1
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- Internal thread G1/4
- Note on materials
- RoHS compliant
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
