Festo
2966

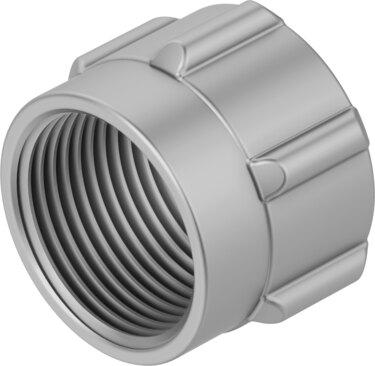

Union nut MCK-PK-6
The Festo part number 2966 is an industrial component featuring an internal thread M12x1 and a pneumatic connection 1 designed for pneumatic tubing with an outside diameter of 8 mm or for a barbed fitting with an inside diameter of 6 mm, secured with an anodized wrought aluminum alloy union nut. It operates across a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar, -13.775 psi to 174 psi) and an ambient temperature range of -10 °C to 60 °C. This RoHS compliant part achieves corrosion resistance class 2 for moderate corrosion stress and conforms to VDMA24364-B2-L LABS conformity standards. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2966
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2966.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Internal thread M12x1
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2966. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
