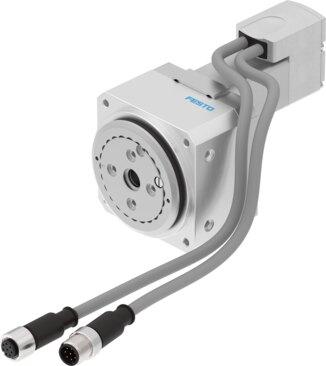

Reference imageConfirm configuration by manufacturer part number.
Festo
3008526
Rotary actuator ERMO-16-ST-E
The Festo 3008526 is an electromechanical rotary actuator featuring an integrated gearbox of size 16 and a 9:1 gear ratio designed for any mounting position using internal thread mounting. This unit delivers a nominal torque of 0.8 Nm, a nominal rotary speed of 100 rpm, a maximum speed at 90° of 200 rpm, and an infinite rotation angle with a 100% duty cycle. It achieves a repetition accuracy of ±0.05°, a torsional backlash of 0.2 deg, a step angle of 1.8 deg with full step, and supports a maximum axial force of 290 N and maximum radial force of 300 N at a product weight of 900 g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3008526
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3008526.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Structural design
- Electromechanical rotary actuator | With integrated gearbox
- Mounting position
- Any
- Type of mounting
- With internal thread
- Rotation angle
- Innite
- Gear ratio
- 9:1
- Nominal torque
- 0.8 Nm
- Nominal rotary speed
- 100 rpm
- Max. speed at 90°
- 200 rpm
- Impact energy in the end positions
- 7E-05 J
- Torsional backlash
- 0.2 deg
- Repetition accuracy
- ±0.05°
- Max. axial force
- 290 N
- Max. radial force
- 300 N
- Permissible mass moment of inertia
- 0.0013 kgm²
- Product weight
- 900 g
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Mass moment of inertia JO
- 0.0383 kgcm²
- Duty cycle
- 100%
- Nominal operating voltage DC
- 24 V
- Brake DC operating voltage
- 24 V
- Brake power consumption
- 8 W
- Brake holding torque
- 1 Nm
- Brake mass moment of inertia
- 0.0069 kgcm²
- Motor nominal current
- 1.4 A
- Insulation protection class
- B
- Motor type
- Stepper motor
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
