Festo
3012492

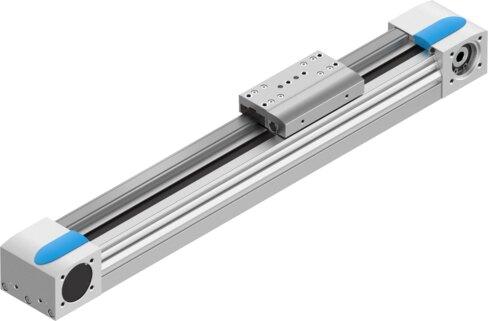

Belt driven linear actuator EGC-70-300-TB-KF-0H-GK
The Festo 3012492 is an electromechanical linear axis featuring a toothed belt drive with a 3 mm pitch, size 70 designation, and a 300 mm working stroke governed by an integrated recirculating ball bearing guide. This component supports versatile installation via any mounting position, accommodates either a stepper or servo motor, and delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm under a 100% duty cycle. Operating within an ambient temperature range of -10 °C to 60 °C, the unit achieves an IP40 protection rating, VDMA24364 Zone III LABS conformity, an effective drive pinion diameter of 24.83 mm, second moments of area Iy of 395000 mm⁴ and Iz of 577000 mm⁴, and maximum forces Fy and Fz of 1850 N. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3012492
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3012492.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 300 mm
- Size
- 70
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 395000 mm⁴
- 2nd moment of area Iz
- 577000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6842 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6842 N
- Max. no-load resistance to shifting
- 14.5 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm
- Max. torque Mz
- 51 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm
