3012495

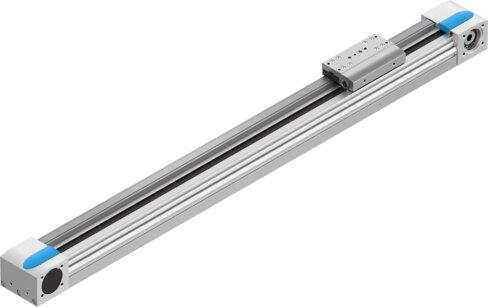

Name: Festo 3012495 Belt driven linear actuator EGC-70-600-TB-KF-0H-GK
Brand: Festo

Belt driven linear actuator EGC-70-600-TB-KF-0H-GK

The Festo 3012495 is an electromechanical linear axis featuring a toothed belt drive with a 3 mm pitch, a 24.83 mm drive pinion effective diameter, and a size 70 designation. It incorporates a recirculating ball bearing guide, a 600 mm working stroke with 0 mm stroke reserve, and is compatible with stepper or servo motors in any mounting position. Operating at an IP40 degree of protection and a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C, the unit delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm while withstanding maximum Fy and Fz forces of 1850 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3012495
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3012495.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 24.83 mm
Working stroke: 600 mm
Size: 70
Stroke reserve: 0 mm
Toothed belt pitch: 3 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Max. acceleration: 50 m/s²
Max. speed: 5 m/s
Repetition accuracy: ±0.08 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
2nd moment of area Iy: 395000 mm⁴
2nd moment of area Iz: 577000 mm⁴
Max. force Fy: 1850 N
Max. force Fz: 1850 N
Max. force Fy total axis: 1850 N
Max. force Fz total axis: 1850 N
Fy with theoretical service life of 100 km (from a guide perspective only): 6842 N
Fz with theoretical service life of 100 km (from a guide perspective only): 6842 N
Max. no-load resistance to shifting: 14.5 N
Max. torque Mx: 16 Nm
Max. torque My: 51 Nm
Max. torque Mz: 51 Nm
Max. moment Mx total axis: 16 Nm
Max. moment My total axis: 51 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3012495. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
