Festo
3012496

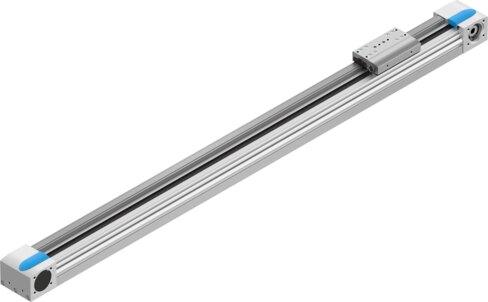

Belt driven linear actuator EGC-70-800-TB-KF-0H-GK
The Festo 3012496 is an electromechanical linear axis with a toothed belt featuring a size 70 structure, an 800 mm working stroke, and a recirculating ball bearing guide. This unit operates with either a stepper or servo motor, delivering a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm across a 100% duty cycle. It provides a drive pinion effective diameter of 24.83 mm, a toothed belt pitch of 3 mm, maximum forces Fy and Fz of 1850 N, and operates within an ambient temperature range of -10 °C to 60 °C while maintaining IP40 protection and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3012496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3012496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 800 mm
- Size
- 70
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 395000 mm⁴
- 2nd moment of area Iz
- 577000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6842 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6842 N
- Max. no-load resistance to shifting
- 14.5 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm
- Max. torque Mz
- 51 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3012496. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
