Festo
3013355

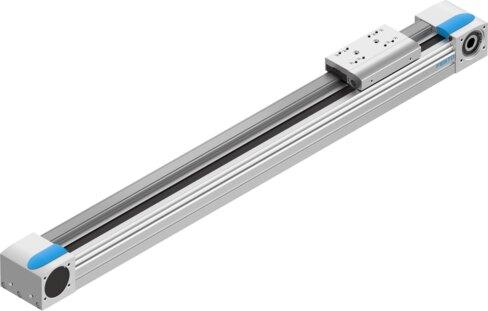

Belt driven linear actuator EGC-80-600-TB-KF-0H-GK
Festo Belt driven linear actuator EGC-80-600-TB-KF-0H-GK, part number 3013355, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 3013355
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013355.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 600 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 844000 mm⁴
- 2nd moment of area Iz
- 1160000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 3050 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Max. no-load resistance to shifting
- 28 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 97 Nm
- Max. torque Mz
- 97 Nm
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 97 Nm
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013355. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
