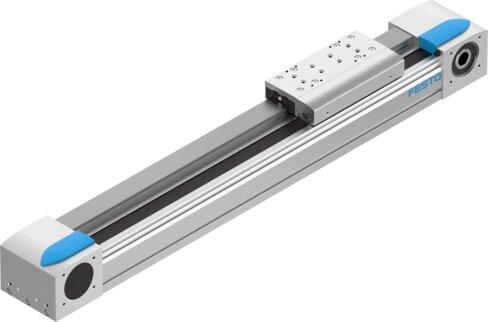

Reference imageConfirm configuration by manufacturer part number.
Festo
3013365
Belt driven linear actuator EGC-120-500-TB-KF-0H-GK
The Festo 3013365 is an electromechanical linear axis featuring a toothed belt drive with a 5 mm pitch, a 39.79 mm drive pinion effective diameter, and a size 120 structural design. Equipped with a recirculating ball bearing guide and a 500 mm working stroke with zero stroke reserve, it accommodates stepper or servo motors in any mounting position while operating at a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C. This IP40-rated unit delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, maximum forces Fy and Fz of 6890 N, and 2nd moments of area Iy and Iz of 4620000 mm⁴ and 5650000 mm⁴ respectively, all while complying with VDMA24364 Zone III LABS conformity standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013365
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013365.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 500 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 4620000 mm⁴
- 2nd moment of area Iz
- 5650000 mm⁴
- Max. force Fy
- 6890 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 6890 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Max. no-load resistance to shifting
- 70 N
- Max. torque Mx
- 144 Nm
- Max. torque My
- 380 Nm
- Max. torque Mz
- 380 Nm
- Max. moment Mx total axis
- 144 Nm
- Max. moment My total axis
- 380 Nm
