Festo
3013366

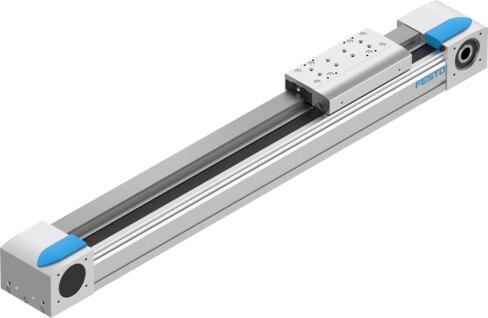

Belt driven linear actuator EGC-120-600-TB-KF-0H-GK
The Festo 3013366 is an electromechanical linear axis featuring a toothed belt drive with a 5 mm pitch, a 120 size, a 600 mm working stroke, and a 39.79 mm drive pinion effective diameter. It incorporates a recirculating ball bearing guide, supports any mounting position, achieves a repetition accuracy of plus or minus 0.08 mm, and operates at a 100% duty cycle with a maximum speed of 5 m/s and a maximum acceleration of 50 m/s squared. This unit delivers a maximum force Fy and Fz of 6890 N, features 2nd moments of area Iy of 4620000 mm to the fourth and Iz of 5650000 mm to the fourth, complies with VDMA24364 Zone III LABS conformity, offers IP40 protection, and functions within an ambient temperature range of -10 degrees Celsius to 60 degrees Celsius. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013366
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013366.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 600 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 4620000 mm⁴
- 2nd moment of area Iz
- 5650000 mm⁴
- Max. force Fy
- 6890 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 6890 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Max. no-load resistance to shifting
- 70 N
- Max. torque Mx
- 144 Nm
- Max. torque My
- 380 Nm
- Max. torque Mz
- 380 Nm
- Max. moment Mx total axis
- 144 Nm
- Max. moment My total axis
- 380 Nm
