Name: Festo 3013369 Belt driven linear actuator EGC-120-1200-TB-KF-0H-GK
Brand: Festo

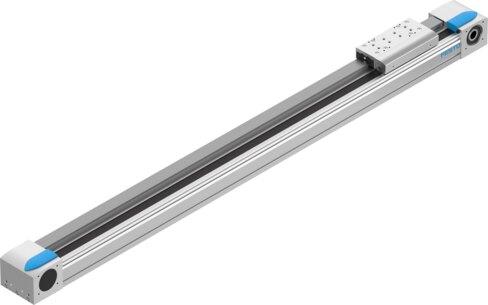

Belt driven linear actuator EGC-120-1200-TB-KF-0H-GK

The Festo 3013369 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a working stroke of 1200 mm, and a size 120 profile incorporating a recirculating ball bearing guide. This unit supports stepper or servo motors, delivering a drive pinion effective diameter of 39.79 mm, a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm. Designed for any mounting position with an IP40 protection rating, it operates within an ambient temperature range of -10 °C to 60 °C at a 100% duty cycle, withstanding maximum forces Fy and Fz of 6890 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3013369
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3013369.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 39.79 mm
Working stroke: 1200 mm
Size: 120
Stroke reserve: 0 mm
Toothed belt pitch: 5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Max. acceleration: 50 m/s²
Max. speed: 5 m/s
Repetition accuracy: ±0.08 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
2nd moment of area Iy: 4620000 mm⁴
2nd moment of area Iz: 5650000 mm⁴
Max. force Fy: 6890 N
Max. force Fz: 6890 N
Max. force Fy total axis: 6890 N
Max. force Fz total axis: 6890 N
Fy with theoretical service life of 100 km (from a guide perspective only): 25383 N
Fz with theoretical service life of 100 km (from a guide perspective only): 25383 N
Max. no-load resistance to shifting: 70 N
Max. torque Mx: 144 Nm
Max. torque My: 380 Nm
Max. torque Mz: 380 Nm
Max. moment Mx total axis: 144 Nm
Max. moment My total axis: 380 Nm
