Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

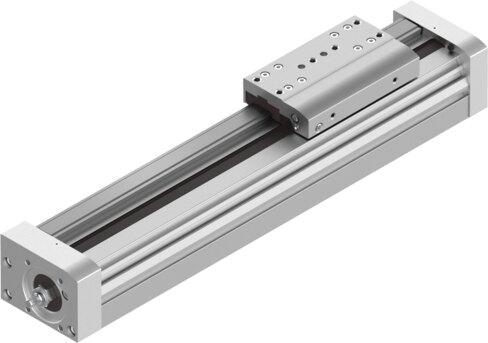

Reference imageConfirm configuration by manufacturer part number.
Festo
3013389
Ball screw axis EGC-70-200-BS-10P-KF-0H-ML-GK
The Festo 3013389 is an electromechanical linear axis featuring a ball screw structural design with a size 70 designation, a 200 mm working stroke, and a 12 mm screw diameter operating at a 10 mm/U spindle pitch. This component incorporates a recirculating ball bearing guide, supports any mounting position, accommodates stepper or servo motors, and achieves a maximum speed of 0.5 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.02 mm at a 100% duty cycle. It provides an IP40 degree of protection, VDMA24364-B2-L LABS conformity, an ambient temperature range of -10 °C to 60 °C, 2nd moments of area of 419000 mm⁴ (Iy) and 578000 mm⁴ (Iz), and a maximum force Fy of 1850 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013389
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013389.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 70
- Stroke reserve
- 0 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 419000 mm⁴
- 2nd moment of area Iz
- 578000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm
- Max. torque Mz
- 51 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013389. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
