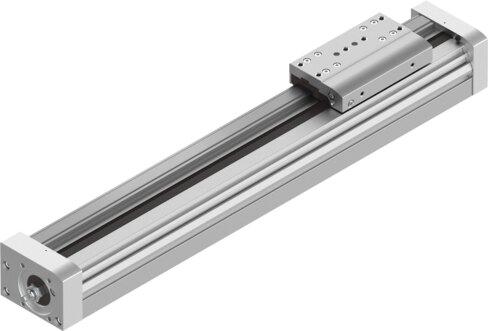

Name: Festo 3013390 Ball screw axis EGC-70-300-BS-10P-KF-0H-ML-GK
Brand: Festo

Ball screw axis EGC-70-300-BS-10P-KF-0H-ML-GK

The Festo 3013390 is an electromechanical linear axis featuring a ball screw structural design with a size 70 profile and a 300 mm working stroke. It incorporates a recirculating ball bearing guide, a 12 mm screw diameter, a 10 mm/U spindle pitch, and achieves a repetition accuracy of ±0.02 mm alongside a maximum speed of 0.5 m/s and 15 m/s² maximum acceleration. Rated for an ambient temperature range of -10 °C to 60 °C with IP40 protection, this unit supports any mounting position and operates at a 100% duty cycle with stepper or servo motors. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3013390
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3013390.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 300 mm
Size: 70
Stroke reserve: 0 mm
Screw diameter: 12 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Max. acceleration: 15 m/s²
Max. speed: 0.5 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
2nd moment of area Iy: 419000 mm⁴
2nd moment of area Iz: 578000 mm⁴
Max. force Fy: 1850 N
Max. force Fz: 1850 N
Max. force Fy total axis: 1850 N
Max. force Fz total axis: 1850 N
Fy with theoretical service life of 100 km (from a guide perspective only): 6815 N
Fz with theoretical service life of 100 km (from a guide perspective only): 6815 N
Max. torque Mx: 16 Nm
Max. torque My: 51 Nm
Max. torque Mz: 51 Nm
Max. moment Mx total axis: 16 Nm
Max. moment My total axis: 51 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3013390. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
