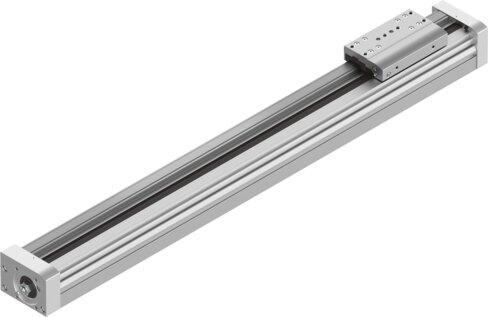

Reference imageConfirm configuration by manufacturer part number.
Festo
3013392
Ball screw axis EGC-70-500-BS-10P-KF-0H-ML-GK
The Festo 3013392 is an electromechanical linear axis with a ball screw, featuring a size 70 designation and a 500 mm working stroke. Powered by either a stepper or servo motor, this component incorporates a recirculating ball bearing guide, a 12 mm screw diameter, and a 10 mm/U spindle pitch, delivering a maximum speed of 0.5 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.02 mm. It operates at a 100% duty cycle within an ambient temperature range of -10 °C to 60 °C and achieves an IP40 degree of protection with VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013392
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013392.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 70
- Stroke reserve
- 0 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 419000 mm⁴
- 2nd moment of area Iz
- 578000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm
- Max. torque Mz
- 51 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013392. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
