Festo
3013536

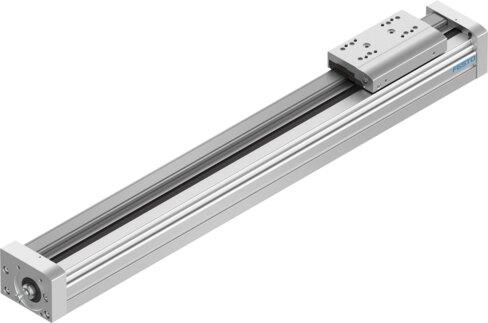

Ball screw axis EGC-80-500-BS-10P-KF-0H-ML-GK
The Festo 3013536 is an electromechanical linear axis featuring a ball screw structural design with an 80 size, 500 mm working stroke, 15 mm screw diameter, and 10 mm/U spindle pitch. This component incorporates a recirculating ball bearing guide, supports any mounting position, and operates with a 100% duty cycle, achieving a max speed of 0.5 m/s, max acceleration of 15 m/s², and repetition accuracy of ±0.02 mm. Built with an IP40 degree of protection, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -10 °C to 60 °C, it handles a max force Fy of 3050 N, 2nd moment of area Iy of 981000 mm⁴, and Iz of 1320000 mm⁴ using either a stepper or servo motor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 500 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Screw diameter
- 15 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 981000 mm⁴
- 2nd moment of area Iz
- 1320000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 3050 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 97 Nm
- Max. torque Mz
- 97 Nm
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 97 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
