Festo
3013541

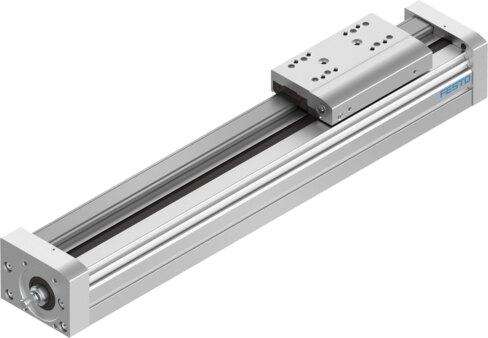

Ball screw axis EGC-80-300-BS-20P-KF-0H-ML-GK
The Festo 3013541 is an electromechanical linear axis with a ball screw, featuring a size of 80, a 300 mm working stroke, a 15 mm screw diameter, and a 20 mm/U spindle pitch. Integrated with a recirculating ball bearing guide, this unit accommodates a stepper or servo motor in any mounting position while delivering a max speed of 1 m/s, a max acceleration of 15 m/s², a repetition accuracy of ±0.02 mm, and a max force Fy of 3050 N at a 100% duty cycle. Operating within an ambient temperature range of -10 °C to 60 °C, the assembly holds an IP40 degree of protection, VDMA24364-B2-L LABS conformity, 0 mm stroke reserve, and 2nd moments of area Iy of 981000 mm⁴ and Iz of 1320000 mm⁴. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Screw diameter
- 15 mm
- Spindle pitch
- 20 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 1 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 981000 mm⁴
- 2nd moment of area Iz
- 1320000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 3050 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 97 Nm
- Max. torque Mz
- 97 Nm
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 97 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013541. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
