Festo
3013542

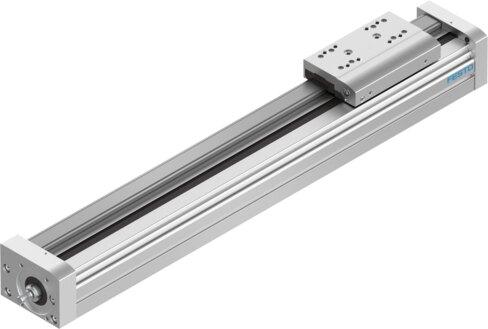

Ball screw axis EGC-80-400-BS-20P-KF-0H-ML-GK
The Festo 3013542 is an electromechanical linear axis featuring a ball screw structural design with a size 80, a working stroke of 400 mm, a screw diameter of 15 mm, and a spindle pitch of 20 mm/U. This component incorporates a recirculating ball bearing guide, operates with a stepper or servo motor at a max speed of 1 m/s and max acceleration of 15 m/s², and delivers a repetition accuracy of ±0.02 mm alongside a max force Fy of 3050 N at a 100% duty cycle. Rated to IP40 with VDMA24364-B2-L LABS conformity, the unit functions within an ambient temperature range of -10 °C to 60 °C in any mounting position, featuring 2nd moments of area Iy of 981000 mm⁴ and Iz of 1320000 mm⁴ with 0 mm stroke reserve. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013542
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013542.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Screw diameter
- 15 mm
- Spindle pitch
- 20 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 1 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 981000 mm⁴
- 2nd moment of area Iz
- 1320000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 3050 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 97 Nm
- Max. torque Mz
- 97 Nm
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 97 Nm
