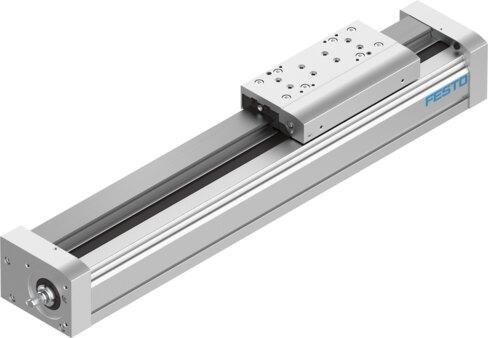

Reference imageConfirm configuration by manufacturer part number.
Festo
3013574
Ball screw axis EGC-120-400-BS-10P-KF-0H-ML-GK
The Festo 3013574 is an electromechanical linear axis featuring a ball screw structure with a size 120, a working stroke of 400 mm, a 25 mm screw diameter, and a 10 mm/U spindle pitch. This component operates with a recirculating ball bearing guide in any mounting position, delivering a max speed of 0.6 m/s, a max acceleration of 15 m/s², a repetition accuracy of ±0.02 mm, and a 100% duty cycle powered by a stepper or servo motor. Constructed with an IP40 degree of protection and VDMA24364-B2-L LABS conformity for an ambient temperature range of -10 °C to 60 °C, it supports a max force Fy of 6890 N along with 2nd moments of area Iy at 5010000 mm⁴ and Iz at 5820000 mm⁴. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013574
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013574.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Screw diameter
- 25 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 5010000 mm⁴
- 2nd moment of area Iz
- 5820000 mm⁴
- Max. force Fy
- 6890 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 6890 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Max. torque Mx
- 144 Nm
- Max. torque My
- 380 Nm
- Max. torque Mz
- 380 Nm
- Max. moment Mx total axis
- 144 Nm
- Max. moment My total axis
- 380 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3013574. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
