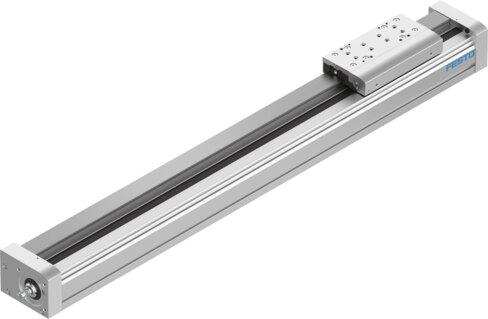

Reference imageConfirm configuration by manufacturer part number.
Festo
3013577
Ball screw axis EGC-120-800-BS-10P-KF-0H-ML-GK
The Festo 3013577 is an electromechanical linear axis featuring a ball screw structural design with a 120 size, an 800 mm working stroke, and a 25 mm screw diameter driven by a 10 mm/U spindle pitch. Engineered for operation with either a stepper or servo motor, this unit achieves a maximum speed of 0.6 m/s, a maximum acceleration of 15 m/s², a repetition accuracy of ±0.02 mm, and a 100% duty cycle across an ambient temperature range of -10 °C to 60 °C. The assembly incorporates a recirculating ball bearing guide, supports any mounting position, provides IP40 protection, and delivers a maximum force Fy of 6890 N alongside 2nd moments of area Iy of 5010000 mm⁴ and Iz of 5820000 mm⁴ under VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3013577
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3013577.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 800 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Screw diameter
- 25 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Max. acceleration
- 15 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 5010000 mm⁴
- 2nd moment of area Iz
- 5820000 mm⁴
- Max. force Fy
- 6890 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 6890 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25383 N
- Max. torque Mx
- 144 Nm
- Max. torque My
- 380 Nm
- Max. torque Mz
- 380 Nm
- Max. moment Mx total axis
- 144 Nm
- Max. moment My total axis
- 380 Nm
