Festo
3015256

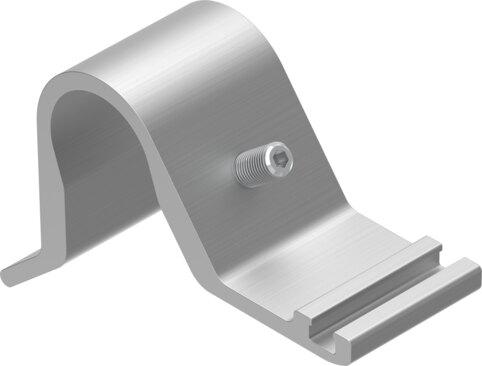

Sensor bracket DASP-M4-320-A
The Festo size 320 industrial component features a design for tie rods with a mounting position of any and is compatible with a piston diameter of Ø320. Constructed with an anodized wrought aluminum alloy housing and high-alloy stainless steel screws, the unit provides corrosion resistance class 3 for high corrosion stress alongside VDMA24364-B2-L LABS conformity and RoHS compliance. This 60 g part requires a tightening torque of 0.6 Nm to 1 Nm for installation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3015256
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3015256.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 320
- Design
- For tie rods
- Mounting position
- Any
- for piston Ø
- Ø320
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Tightening torque
- 0.6 Nm...1 Nm
- Product weight
- 60 g
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | Anodized
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3015256. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
