Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

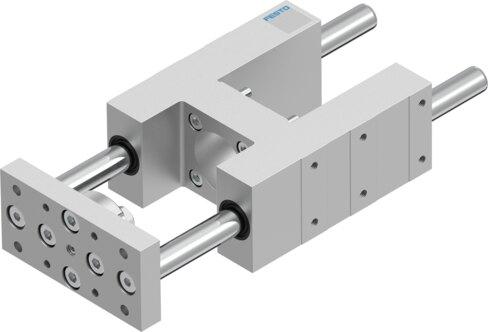

Reference imageConfirm configuration by manufacturer part number.
Festo
3038089
Guide unit EAGF-V2-KF-40-
This Festo industrial component features a size 40 structural guide with an adjustable stroke from 1 mm to 500 mm and 0 µm reversing backlash. Equipped with a recirculating ball bearing guide, it supports a maximum dynamic force of 1000 N (Fy and Fz), a maximum static force of 1260 N, and operates within an ambient temperature range of -20 °C to 80 °C in any mounting position. The unit achieves maximum dynamic torques of 44 Nm (Mx) and 52 Nm (My and Mz), alongside maximum static moments of 55 Nm (Mx) and 65 Nm (My and Mz), with a displacement force of 15 N, CRC 0 corrosion resistance, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3038089
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3038089.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 1 mm...500 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 1283 g
- Basic weight with 0 mm stroke
- 2517 g
- Additional weight per 10 mm stroke
- 32 g
- Additional moving mass per 10 mm stroke
- 32 g
- Center of gravity of moving mass with 0 mm stroke
- 38 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.2 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3038089. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
