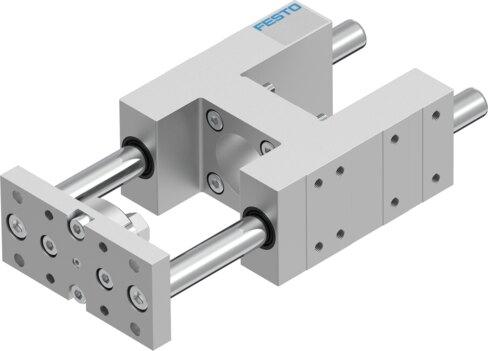

Reference imageConfirm configuration by manufacturer part number.
Festo
3038094
Guide unit EAGF-V2-KF-50-
The Festo 3038094 is an industrial guide unit featuring a size 50 designation, a recirculating ball bearing guide, and an adjustable stroke from 1 mm to 500 mm with 0 µm reversing backlash. This structural design operates at ambient temperatures between -20 °C and 80 °C in any mounting position, exhibiting a displacement force of 15 N alongside a CRC rating of 0 - No corrosion stress and VDMA24364-B2-L LABS conformity. It withstands maximum dynamic forces of 1260 N for Fy and Fz, static forces of 1600 N for Fy and static Fz, dynamic moments of 65 Nm for Mx and 70 Nm for My and Mz, and static moments of 83 Nm for Mx and 89 Nm for My and Mz. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3038094
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3038094.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 1 mm...500 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 2015 g
- Basic weight with 0 mm stroke
- 4059 g
- Additional weight per 10 mm stroke
- 49 g
- Additional moving mass per 10 mm stroke
- 49 g
- Center of gravity of moving mass with 0 mm stroke
- 46 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.3 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
