Festo
30426

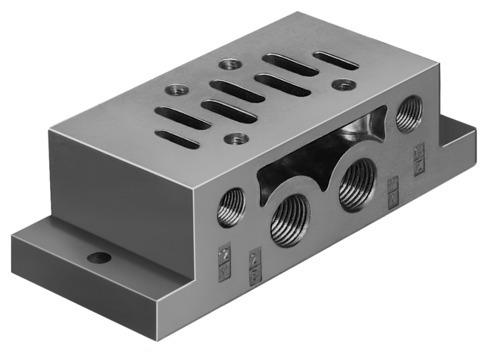

Sub-base NASE-1/4-NPT-1-ISO
This Festo industrial component, part number 30426, features a 6 mm length with sub-base mounting via through-hole and screw-in pneumatic valve mounting. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 bar to 16 bar and a medium and ambient temperature range of -10 °C to 60 °C. The unit includes 1/4 NPTF connections for pneumatic ports 1, 2, 3, 4, and 5, alongside 1/8 NPTF ports for pilot air 12 and 14, while offering IP65 protection, CRC 2 moderate corrosion resistance, VDMA24364-B1/B2-L LABS conformity, and UL-recognized (OL) certification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30426
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30426.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Length
- 6 mm
- Operating pressure
- 0 bar...16 bar
- Certication
- UL - Recognized (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- Screw-in
- Pilot air port 12
- 1/8 NPTF
- Pilot air port 14
- 1/8 NPTF
- Pneumatic connection 1
- 1/4 NPTF
- Pneumatic connection 2
- 1/4 NPTF
- Pneumatic connection 3
- 1/4 NPTF
- Pneumatic connection 4
- 1/4 NPTF
- Pneumatic connection 5
- 1/4 NPTF
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
