Festo
30441

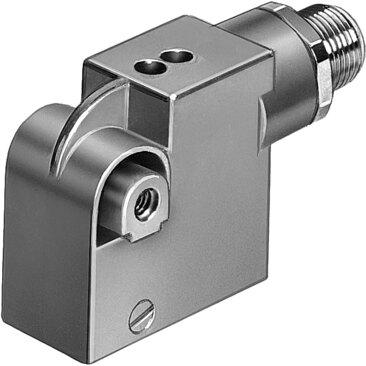

Proximity sensor SMTSO-1-PS-S-LED-24
Festo Proximity sensor SMTSO-1-PS-S-LED-24, part number 30441, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 30441
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30441.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Design
- Block design
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Special features
- Welding eld resistant | Welding spatter-resistant
- Note on materials
- RoHS compliant
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- Hysteresis
- 0.1 mm...1.5 mm
- On time
- 35 ms
- Switch-off time
- 20 ms
- Max. switching frequency
- 20 Hz
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 3 V
- Inductive protective circuit
- Adapted to MZ, MY and ME coils
- Residual current
- 0.01 mA
- Short-circuit protection
- Pulsed
- Overload protection
- Available
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30441. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
