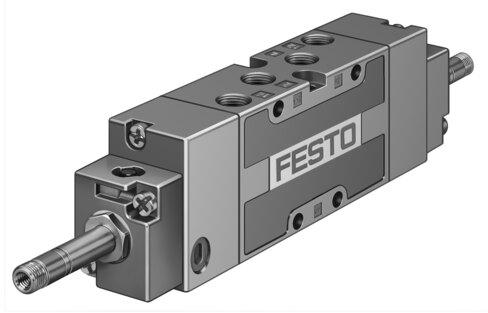

Reference imageConfirm configuration by manufacturer part number.
Festo
30484
Air solenoid valve MFH-5/3G-1/8-B
The Festo 30484 is a 26 mm wide electrical 5/3-way closed piston gate valve featuring a soft sealing principle and internal pilot air supply port with G1/8 pneumatic working ports. It delivers a normal nominal flow rate of 1000 l/min across an operating pressure range of 3 bar to 10 bar, utilizing a mechanical spring reset method with positive overlap lap and non-detenting manual override. This piloted component achieves a maximum switching frequency of 3 Hz with an on switching time of 23 ms and an off switching time of 30 ms in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30484
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30484.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Max. switching frequency
- 3 Hz
- Switching time off
- 30 ms
- On switching time
- 23 ms
- Changeover time
- 23 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Product weight
- 400 g
- Electrical connection
- Via F coil, to be ordered separately
