Festo
30491

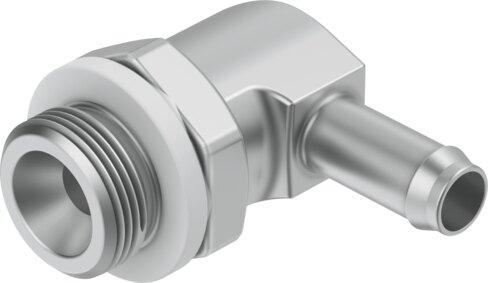

Barbed elbow fitting LCN-M3-PK-2-B
The Festo part number 30491 is an industrial component featuring an M3 external thread for pneumatic connection 1 and a connection for 3 mm outside diameter pneumatic tubing at pneumatic connection 2, with a nominal width of 1.3 mm. Built with a die-cast zinc and high-alloy stainless steel housing, it utilizes a sealing ring on the screwed plug, offers a corrosion resistance class of CRC 2 for moderate corrosion stress, and complies with VDMA24364-B1/B2-L LABS conformity and RoHS material standards. This component operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.95 bar to 10 bar and an ambient temperature range of 0 °C to 60 °C, supporting oil lubrication operation which is required for further use. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30491
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30491.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 1.3 mm
- Type of seal on screwed plug
- Sealing ring
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- External thread M3
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3 mm
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc | high-alloy stainless steel
