Festo
30544

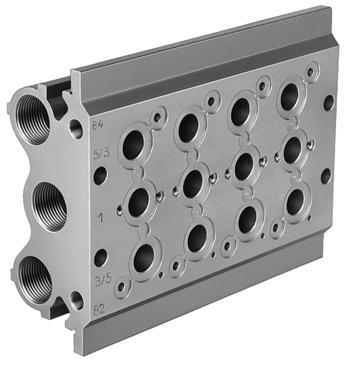

Manifold block PRS-1/8-4-BB
This Festo industrial component, part number 30544, features an aluminum sub-base designed for mounting with a through-hole and supports a maximum of 4 valve positions. It includes G3/8 pneumatic connections for ports 1, 3, and 5, alongside G1/8 pilot exhaust air ports 82 and 84, with a total product weight of 1150 g. The materials are RoHS compliant and conform to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30544
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30544.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 4
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1150 g
- Type of mounting
- With through-hole
- Pilot exhaust air port 82
- G1/8
- Pilot exhaust air port 84
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum
