Festo
30545

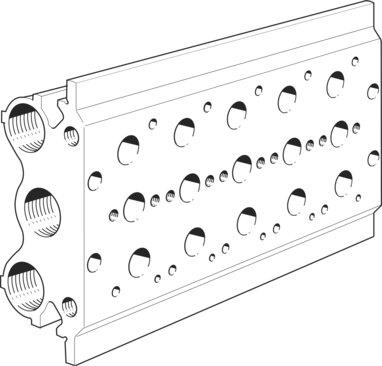

Manifold block PRS-1/8-5-BB
The Festo 30545 is an aluminum sub-base designed for a maximum of 5 valve positions, featuring through-hole mounting and a product weight of 1320 g. It incorporates G3/8 pneumatic connections 1, 3, and 5 alongside G1/8 pilot exhaust air ports 82 and 84, while adhering to VDMA24364-B1/B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 5
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1320 g
- Type of mounting
- With through-hole
- Pilot exhaust air port 82
- G1/8
- Pilot exhaust air port 84
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30545. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
