Festo
30547

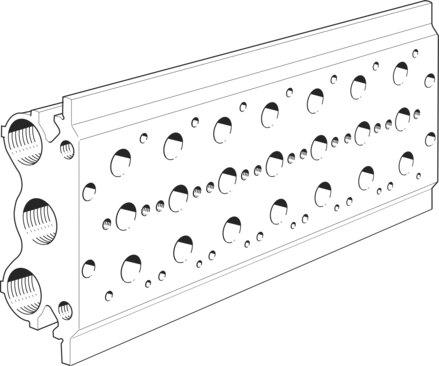

Manifold block PRS-1/8-7-BB
This Festo industrial component, part number 30547, features an aluminum sub-base with a product weight of 1750 g and accommodates a maximum of 7 valve positions through through-hole mounting. It includes G3/8 pneumatic connections 1, 3, and 5, alongside G1/8 pilot exhaust air ports 82 and 84, while maintaining RoHS compliance and VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 7
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1750 g
- Type of mounting
- With through-hole
- Pilot exhaust air port 82
- G1/8
- Pilot exhaust air port 84
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
