Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

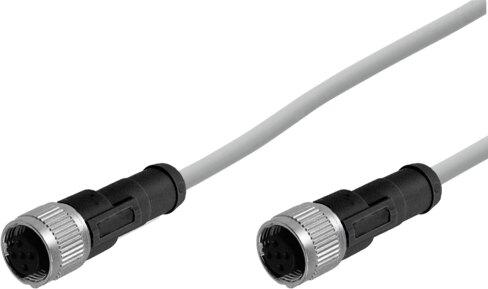

Reference imageConfirm configuration by manufacturer part number.
Festo
3056124
Connecting cable NEBS-M12G12-KS-0.5-SM12G12
The Festo 3056124 is a 0.5 m industrial component featuring a straight M12x1 12-pin A-coded socket on both electrical connections with a shielded, basic cable design and integrated label holder. This 87 g assembly operates at a nominal DC voltage of 30 V within a 0 V to 30 V range, a 1.5 A current rating at 40° C, and 0.8 kV surge resistance in any mounting position. The 8.5 mm diameter cable incorporates twelve 0.14 mm² conductors, an 85 mm minimum bending radius, and a fixed installation bending radius of 42.5 mm. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3056124
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3056124.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With label holder
- Mounting position
- Any
- Product weight
- 87 g
- Electrical connection 1
- Straight socket, M12x1, 12-pin, A-coded
- Electrical connection 2
- Straight socket, M12x1, 12-pin, A-coded
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 30 V
- Current rating at 40° C
- 1.5 A
- Surge resistance
- 0.8 kV
- Shield
- Yes
- Cable length
- 0.5 m
- Cable characteristic
- Basic
- Connector cable test conditions
- Flexural strength: as per Festo standard
- Min. cable bending radius
- 85 mm
- Bending radius, xed cable installation
- 42.5 mm
- Cable diameter
- 8.5 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 12 x 0.14 mm²
- Connection cross section
- 0.14 mm²
- Wire insulation color code
- Pin 1 = brown | Pin 10 = purple | Pin 11 = gray/pink | Pin 12 = red/blue | Pin 2 = blue | Pin 3 = white | Pin 4 = green | Pin 5 = pink | Pin 6 = yellow | Pin 7 = black | Pin 8 = gray | Pin 9 = red
- Degree of protection
- IP67
- Ambient temperature
- -30 °C...80 °C
- Ambient temperature with exible cable installation
- -25 °C...80 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3056124. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
