Festo
3058527

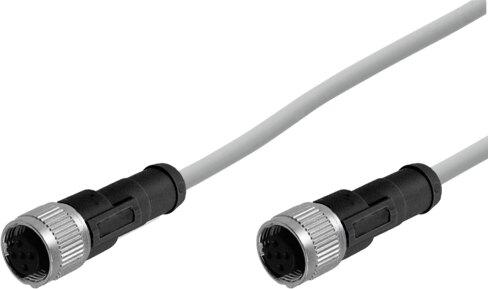

Connecting cable NEBS-M12G12-KS-2-SM12G12
This Festo industrial component, part number 3058527, is a shielded connector cable featuring a straight M12x1, 12-pin, A-coded socket on both ends and an integrated label holder. The 2-meter cable operates at a nominal DC voltage of 30 V across a range of 0 V to 30 V, with a current rating of 1.5 A at 40° C and a surge resistance of 0.8 kV. Constructed with a basic 12 x 0.14 mm² design, an 8.5 mm diameter, and a minimum bending radius of 85 mm for flexible installations or 42.5 mm for fixed installations, it can be mounted in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3058527
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3058527.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With label holder
- Mounting position
- Any
- Product weight
- 223 g
- Electrical connection 1
- Straight socket, M12x1, 12-pin, A-coded
- Electrical connection 2
- Straight socket, M12x1, 12-pin, A-coded
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 30 V
- Current rating at 40° C
- 1.5 A
- Surge resistance
- 0.8 kV
- Shield
- Yes
- Cable length
- 2 m
- Cable characteristic
- Basic
- Connector cable test conditions
- Flexural strength: as per Festo standard
- Min. cable bending radius
- 85 mm
- Bending radius, xed cable installation
- 42.5 mm
- Cable diameter
- 8.5 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 12 x 0.14 mm²
- Connection cross section
- 0.14 mm²
- Wire insulation color code
- Pin 1 = brown | Pin 10 = purple | Pin 11 = gray/pink | Pin 12 = red/blue | Pin 2 = blue | Pin 3 = white | Pin 4 = green | Pin 5 = pink | Pin 6 = yellow | Pin 7 = black | Pin 8 = gray | Pin 9 = red
- Degree of protection
- IP67
- Ambient temperature
- -30 °C...80 °C
- Ambient temperature with exible cable installation
- -25 °C...80 °C
