Festo
30654

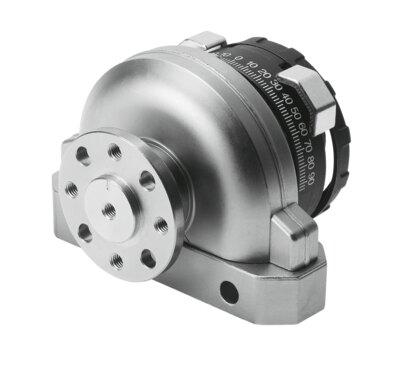

Quarter turn actuator DSRL-12-180-P-FW
The Festo 30654 is a double-acting rotary vane industrial component featuring a size 12 design with an adjustable swivel angle ranging from 0 degrees to 180 degrees and a cushioning angle of 2.2 degrees. Operating on compressed air per ISO 8573-1:2010 [7:-:-] within a pressure range of 0.2 MPa to 0.8 MPa, this 200 g unit delivers a theoretical torque of 1 Nm at 6 bar with elastic cushioning rings at both ends. It accommodates any mounting position using a through-hole type of mounting, an M5 pneumatic connection, and handles a maximum axial force of 18 N alongside a maximum radial force of 45 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30654
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30654.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Cushioning angle
- 2.2 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 18 N
- Max. radial force
- 45 N
- Theoretical torque at 6 bar
- 1 Nm
- Product weight
- 200 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
