Festo
30655

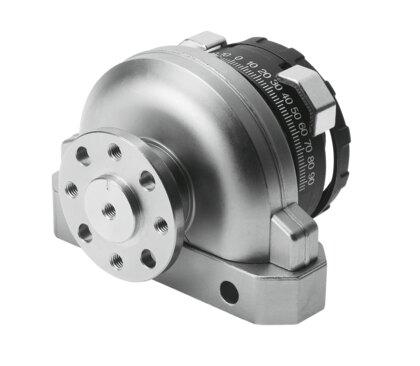

Quarter turn actuator DSRL-16-180-P-FW
The Festo part number 30655 is a double-acting rotary vane industrial component featuring a size 16 design with an adjustment range and swivel angle of 0 degrees to 180 degrees at a 2.1-degree cushioning angle. Equipped with elastic cushioning rings or pads at both ends, this 300 g unit operates on compressed air according to ISO 8573-1:2010 [7:-:-] within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) and an ambient temperature range of -10 °C to 60 °C. It delivers a theoretical torque of 2 Nm at 6 bar, a max swivel frequency of 3 Hz at 6 bar, and accommodates a max axial force of 30 N alongside a max radial force of 75 N with through-hole mounting and an M5 pneumatic connection in any mounting position while meeting VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30655
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30655.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Cushioning angle
- 2.1 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 30 N
- Max. radial force
- 75 N
- Theoretical torque at 6 bar
- 2 Nm
- Product weight
- 300 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 30655. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
