Festo
30656

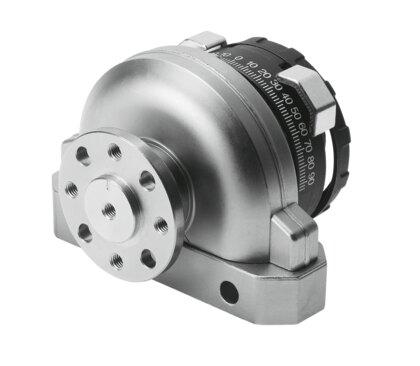

Quarter turn actuator DSRL-25-180-P-FW
The Festo part number 30656 is a double-acting rotary vane industrial component with a size of 25 and an adjustable swivel angle range from 0 degrees to 180 degrees. Operating on compressed air per ISO 8573-1:2010 [7:-:-] at pressures between 0.15 MPa and 0.8 MPa, it delivers a theoretical torque of 5 Nm at 6 bar with elastic cushioning rings or pads at both ends. Weighing 500 g with VDMA24364-B2-L LABS conformity, this unit mounts via through-hole in any position and features M5 pneumatic connections. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 30656
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 30656.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Cushioning angle
- 1.8 deg
- Adjustment range of swivel angle
- 0 deg...180 deg
- Swivel angle
- 0 deg...180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. axial force
- 50 N
- Max. radial force
- 120 N
- Theoretical torque at 6 bar
- 5 Nm
- Product weight
- 500 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Covering material
- PA-reinforced
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- NBR
- Housing material
- Die-cast zinc
